Optima OP-345-SSW 75,000 lb Stainless Steel Double Ended Beam Load Cell, NTEP, Class IIIL

MSRP: $1,025.00
$980.07
(Save $44.93)
Part #:
OP-345-SSW-75
Availability:
Typically ships in 1-2 days

Optima OP-345-SSW 75,000 lb Stainless Steel Double Ended Beam Load Cell

Features

  • NTEP CC: 15-022
  • Class IIIL
  • 75,000 lb capacity rating
  • Stainless steel construction
  • Hermetically sealed
  • IP68 rating
  • Load cell cable length 40 feet
  • Safe overload up to 150% capacity

Interchange

  • Cardinal DB35000S
  • Cardinal DB50000S
  • Cardinal DB75000S
  • Coti Global Sensors CG-DB50000S
  • Rice Lake RLDB50000S
  • Anyload 102FS-YZ-75K
Documentation

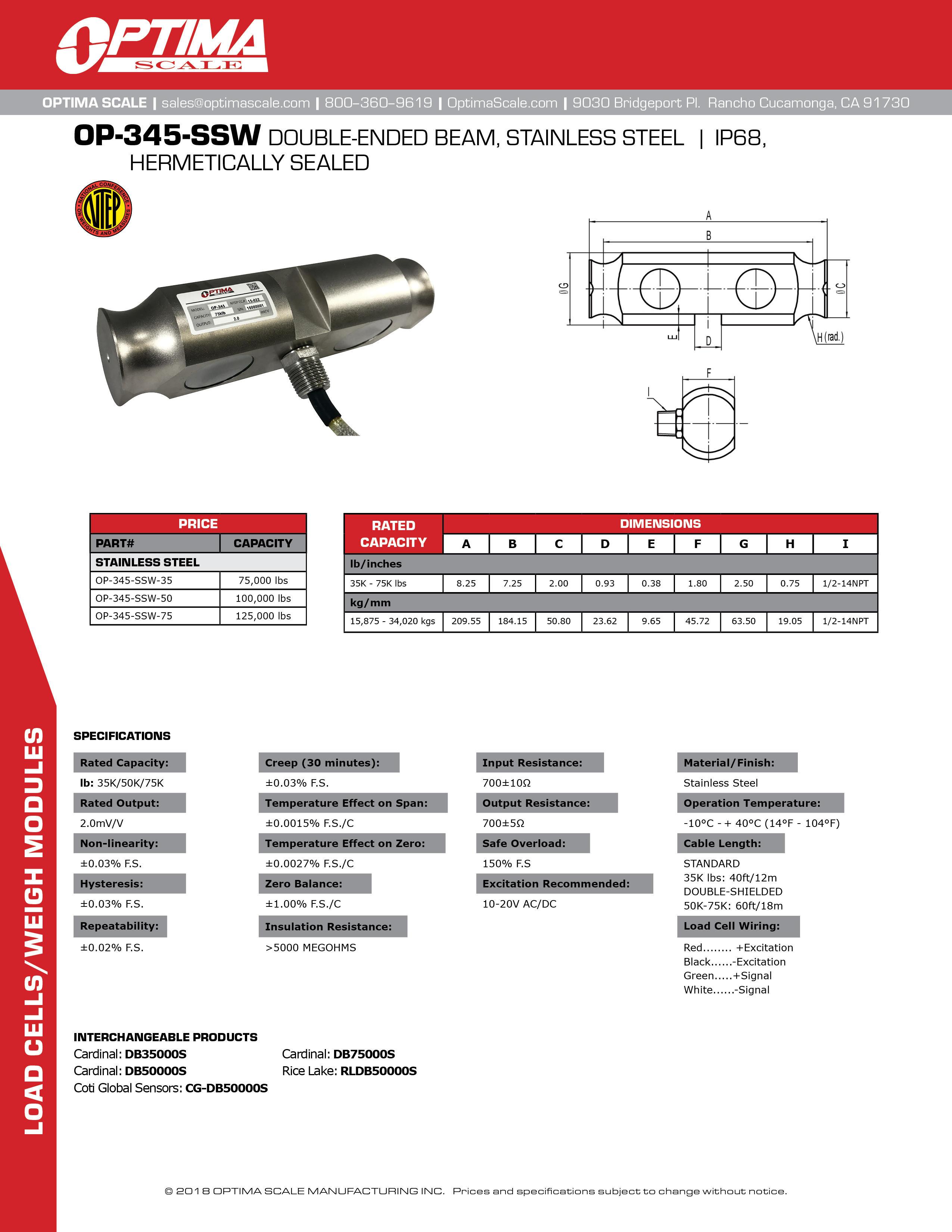

OP-345-SSW Datasheet

1 year limited manufacturer's warranty
NTEP:
Yes
Class:
IIIL
Capacity:
75,000 lb
Safe Overload:
150% capacity
Repeatability:
±0.02 Full scale
Operation Temperature:
-10° C - +40° C
Dimensions:
8.25 x 2.50 x 1.80 in
Construction:
Stainless steel
Seal Type:
Hermetically sealed
IP Rating:
68
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Full Scale Output:
2.0 mV/V
Input Resistance:
700±10 ohms
Output Resistance:
700±5 ohms
Insulation Resistance:
> 5000 megohms
Cable Length:
60 ft
Manufacturer:
Optima
Model:
OP-345-SSW
