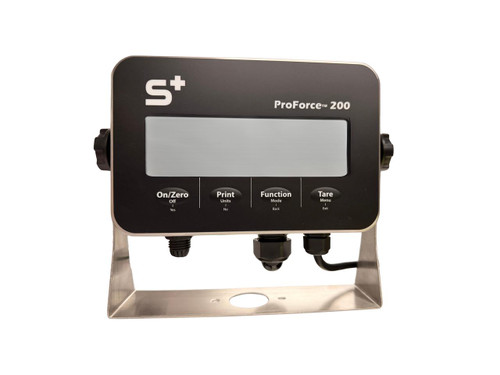

ProForce 200 stainless steel digital indicators from Scales Plus are designed for heavy industrial use in harsh environments. They are made from stainless steel and feature an IP66 protection rating for washdown environments. These multi-purpose indicators cover a wide range of applications and can be connected to almost any scale system. The large LCD display changes color (red, yellow, green) indicating "over", "under" and "accept" while in checkweighing mode. They are NTEP-approved for use in legal-for-trade applications.
Operation is simple with just 4 keys and a large easy-to-read LCD display. The communication interface comes standard with RS232. Optional USB and Ethernet can be added.
ProForce 200 indicators can be powered with the supplied power cable and rechargeable battery.
Product Warranty
- Displayed Resolution:
- 1:30,000
- NTEP Approved Resolution:
- 1:6,000
- NTEP:
- Class III/IIIL
- Internal Resolution:
- 68,500 counts per mV/V per second
- Weighing Units:
- g, kg, lb, oz, lb:oz, metric tonnes
- Applications:
- Weighing, parts counting, checkweighing and totalization
- Protection Rating:
- IP66
- Construction:
- Stainless steel housing and mounting bracket
- Checkweighing Lights:
- Screen changes color for over/under/accept, Red, Yellow, Green
- Display:
- LCD display with multi-color backlight
- Keypad:
- 4 membrane keys
- Communication:
- RS232 (included), USB, Ethernet (optional)
- Calibration:
- Zero, Span or 3 point-Linear
- A/D Conversion Rate:
- 80 Hz
- Load Cell Excitation Voltage:
- 5 VDC
- Load Cell Drive:
- Up to six 350 ohm load cells
- Load Cell Input Sensitivity:
- Up to 3 mV/V
- Auto-Zero Tracking:
- Off, 0.5 d, 1 d or 3 d
- Power:
- AC power cable (included), Rechargeable battery (included)
- Battery Life:
- Up to 100 hours on full charge
- Compliance:
- CSA, CE, UL, WEEE, RoHS
- Dimensions w/Bracket (L x H x W):
- 10.1 x 8 x 2.9 in.
- Weight:
- 6.5 lb
- Brand:
- Scales Plus
- Model:
- PF200
