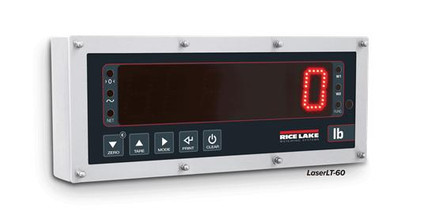

The LaserLT-60 series indicator is versatile for integration with any system. Designed for indoor, outdoor, and washdown applications, these indicators are durable and feature adjustable brightness, six-digit, seven-segment LED displays for easy readings even in direct sunlight. Additionally, multiple mounting options are available for conforming to a multitude of work environments. The Rice Lake LaserLT series is specifically designed to allow an end user to not have to purchase both an indicator and a remote display but instead to handle both applications.
Features
- 2.4 in tall red LED digits
- Six-digit display with high-intensity LEDs
- Handles up to 16 load cells with 350 ohm
- IP68 rated stainless steel enclosure
- Auto Learn mode, weight value only
- Anti-condensation air valve for regulating humidity and pressure
- Configuration for format length, weight location, termination character
- Manual Configuration mode for reading weight, variables and bitmap bytes
- Parameters for motion, overload, decimal point, net character, COZ
- Status LEDs for Zero, Motion, Net, Unit 1, Unit 2
- Integrated five-key waterproof keypad with configurable scale commands
- Adjustment for six levels of brightness through the keypad
- Includes removable back wall mount bracket
- Fitted with anti-condensation air valve to regulate humidity and pressure
- Powered with 110 - 240VAC or 12 to 24 VDC
Documentation
One-year limited warranty
- NTEP:
- Yes
- Class:
- III/IIIL
- CC:
- 20-046
- Load Cell Capability:
- 16 × 350 ohm
- Excitation Voltage:
- 5 VDC
- Analog Signal Input Range:
- ± 39 mV
- Analog Signal Sensitivity:
- 0.03 µV/graduation minimum, 0.3 µV/graduation recommended
- A/D Sample Rate:
- Four channel A/D up to 200 Conv./sec. auto select
- Power:
- AC voltages: 100 to 240 VAC, DC voltages: 12 to 24 VDC
- Resolution:
- Internal: 1,500,000 counts, Display: 800,000
- Display:
- 2.4 inch tall 6-digit, 7-segment LED
- Keys/Buttons:
- Five key, Zero (Down), Tare (Up), Mode (Right), Print (Enter), C (On/Off)
- Construction:
- 304 stainless steel, IP68
- Communication:
- RS-232, RS-485
- Approvals:
- CE marked
- Operating Temperature:
- -40°F to 120°F (-40°C to 49°C)
- Dimensions:
- 16.14" x 6.5" x 4.84"
- Weight:
- 10 lb
- Brand:
- Rice Lake
- Part Number:
- 197453
