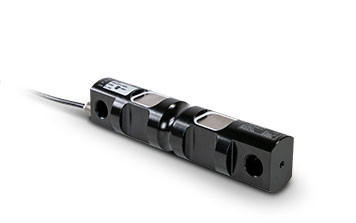

The Rice Lake RL72020 Painted Double Ended Beam Load Cells are a high-performance weighing solution designed for tank and hopper weighing, conveyor systems, and vehicle scales. This load cell boasts an IP67 rating and a paint coating for extra corrosion resistance and durability. Their double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy.
Features
- Finished with MLC paint coating for extra resistance to corrosion
- High alloy steel nickel plated construction
- Environmentally sealed
- IP 67 rating
- Load cell cable length 30 ft
- Safe overload up to 150% capacity
- FM approved
Interchange
- RICE LAKE WEIGHING SYSTEMS RL70000*
- VPG REVERE 5103*
- ARTECH 70210
- METTLER-TOLEDO SLD 430
Documentation
2 year limited manufacturer's warranty
- Capacity:
- 60,000 lb
- NTEP:
- Yes
- Class:
- III / IIIL
- CC:
- 21-064
- Safe Overload:
- 150% capacity
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5 to 10 VDC (Maximum of 15)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 770 +/- 10 ohms
- Output Resistance:
- 700 +/- 5 ohms
- Insulation Resistance:
- 5000 megohms
- Construction:
- High alloy steel, nickel plated
- Finish:
- MLC coating
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Combined Error:
- +/- 0.02% full scale
- Cable Length:
- 30 ft
- Part Number:
- 201775
- Approvals:
- FM
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL72020-Painted
