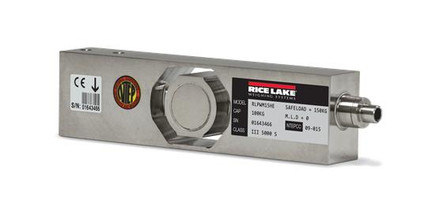

Rice Lake RLPWM15HE-10kg Single Point Load Cell, NTEP
The Rice Lake RLPWM15HE single point load cells are constructed of stainless steel and have a hermetically sealed IP69K rating which means they can withstand the toughest work environments! The RLPWM15HE is NTEP approved for legal for trade applications.
The RLPWM15HE load cells are interchangeable with HBM PW15AH load cells.
Features
- 10 kg / 22 lb capacity rating
- Stainless steel construction
- Hermetically sealed IP69K rated
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
- 2.83 ft of cable stripped and tinned
Product Warranty
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RLPWM15HE-10kg
- Part Number:
- 107174
- Certification:
- NTEP Certified 1:5000 III
- Other Approvals:
- cFM
- Capacity Rating:
- 10 kg / 22 lb
- Safe Overload:
- 150% capacity
- Length:
- 5.91"
- Height:
- 1.57"
- Width:
- 0.98"
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Blue = + Excitation, Black = - Excitation, Green = +Sense, Grey = - Sense, White = + Signal, Red = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 10) ohm
- Input Resistance:
- 380 (± 15) ohm
- Insulation Resistance:
- 1000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Hermetically Sealed IP69K
- Total Error:
- 0.02 % full scale
- Cable Length:
- 2.83 ft cable stripped and tinned
- Cable Diameter:
- 0.212 PVC jacket
- Interchangeable Products:
- HBM PW15AH load cells
