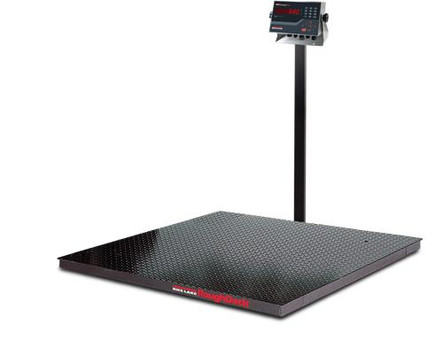

Rice Lake RoughDeck Rough-N-Ready floor scales feature heavy-duty industrial design complete with a structural steel channel frame, four NTEP-certified alloy steel shear beam load cells, and a 20-foot SURVIVOR® EL147HE hostile environment load cell cable. The floor scale and junction box are protected by a six-inch structural steel channel frame and diamond treadplate safety deck. This package pairs the 680 Synergy Series digital weight indicator including an LED display with seven 0.8 in tall, seven-segment digits and eight annunciators. The 680 indicator 304 stainless steel construction is built to withstand harsh environments and washdown.
Rough-N-Ready floor scale packages are factory calibrated and delivered ready-to-use.
Features
- NTEP approved floor scale package ready-to-use, factory calibrated
- IP69K washdown rated 680 Synergy indicator
- 20 ft load cell cable with quick disconnect
- Four NTEP certified alloy steel shear beam load cells
- Stainless steel junction box
- Structural steel construction
- Display is easy to read with seven 0.8" tall digits
- 18-button keypad with numeric keys
- Two full duplex RS-232 ports, RS-485/422, Micro USB, and ethernet communication
Applications
- Weighing
Documentation
Product Warranty
- Capacity:
- 10,000 lb
- Readability:
- 2 lb
- Platform Size:
- 4 x 4 ft.
- Indicator:
- 680 Indicator
- Approvals:
- NTEP, Measurement Canada
- NTEP:
- Class III
- Cable Length:
- 20 ft
- Power:
- 115 VAC
- Display:
- Seven 0.8 in tall, seven-segment digits
- Communication:
- Two RS-232 (three-wire), RS-485/RS-422 (two-wire or four-wire), Micro USB (device), Ethernet TCP/IP (10/100)
- Annunciators:
- Eight LED annunciators
- Keypad:
- Flat membrane panel, tactile feel (18 buttons plus ON/OFF)
- Construction:
- Stainless steel indicator and painted mild steel platform
- Manufacturer:
- Rice Lake
- Model:
- RoughDeck Rough-n-Ready
- Part No.:
- 196662
