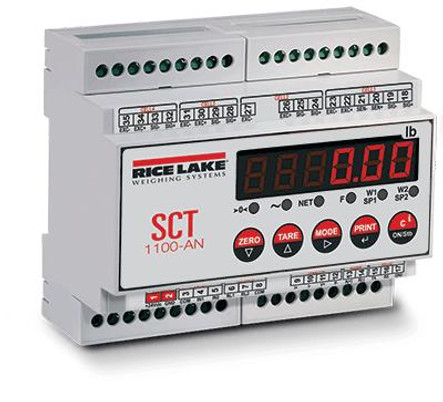

Rice Lake SCT-1100 Advanced Configurable Signal Conditioning Transmitter, NTEP
The ideal solution for PLC systems which require weight data from a scale, Rice Lake’s SCT signal transmitters offer maximum control without the additional cost or space required of a traditional weight indicator. These multi-function transmitters have a compact design while presenting the same signal-conditioning functions. Utilized as an independent or dependent four-channel digital junction box, the SCT-1100 allows for the direct reading and diagnosis of each individual connected load cell or summed as a whole.
Features
- Converts digital weight to analog output
- Space saving DIN rail mounting
- 1.5 million count internal resolution
- 800,000 minimum displayed resolution
- System linearity ± 0.01% full scale
- Supports up to 4 350 ohm load cells
- 2 inputs, 2 outputs
- LED display, 13 mm, six digit, seven segment
- NEMA Type 1 plastic pluggable connectors
- Display units in lb, kg, and grams
- Net, center of zero, stability annunciators
- Five key, membrane panel, tactile feel: Zero (Down), Tare (Up), Mode (Right), Print (Enter), C (On/Off)
- 12-24 VDC power (power supply not included)
- NTEP CC 20-046
1 year manufacturer's limited warranty
- Analog Signal Output:
- Opt isolated, 16-bit 0-20mA, 4-20mA (Maximum 350,000 ohm) 0-5VDC, 0-10VDC (Minimum 10,000 ohm)
- Maximum Displayed Resolution:
- 1:800,000 minimum
- Internal Resolution:
- Internal resolution: 1.5 million counts Weight display resolution: 800,000 minimum
- Weighing Units:
- lb, kg, g
- Display:
- LED
- Keypad Controls:
- Five key, membrane panel, tactile feel
- Digital Inputs:
- Two inputs: 12/24 VDC
- Outputs:
- Two outputs:150 mA 48 VAC/ 150 mA 60 VDC
- NEMA Rating:
- NEMA Type 1 plastic pluggable connectors
- Load Cell Excitation:
- 5VDC, 120 mA
- Load Cell Drive:
- Up to 8 x 350 ohm
- Analog Load Cell Input Range:
- +/- 39 mV
- Analog Load Cell Signal Sensitivity:
- 0.1 ¼V/graduation minimum, 1.0 ¼V/grad recommended
- A/D sample rate:
- Four channel A/D 24-bit sigma-delta conversion, up to 200 conv. /sec. auto select
- Operating Temperature Range:
- -15° C to 40° C
- Power:
- 12/24 VDC, Power Consumption: 70 mA min - 100 mA max
- Housing Dimensions:
- 4.17 in x 3.54 in x 2.28 in / 106 mm x 90 mm x 58 mm
- Weight:
- 1 lb
- Brand:
- Rice Lake
- Model:
- SCT-1100
- Approvals:
- NTEP CC 20-046,Measurement Canada AM-6165C, OIML, cULus, EU Legal for Trad
