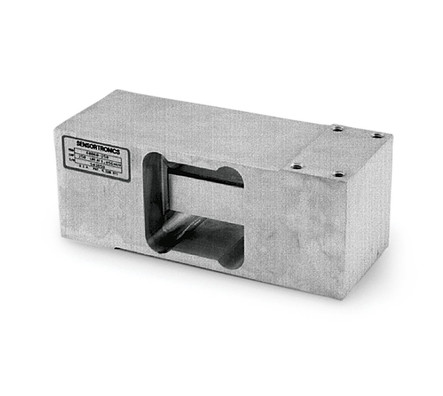

VPG Sensortronics 60060 single point load cells feature aluminum construction and an environmental seal with an IP67 rating. Sensortronics 60060 load cells are a single point design, making them a better solution for applications requiring a higher level of accuracy and precision.
Features
- Aluminum construction
- Environmentally sealed IP67 rating
- Load cell cable length of 10 ft
- Safe overload up to 150% capacity
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 250 lb
- Safe Overload:
- 150% capacity
- NTEP:
- Yes
- Class:
- III
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V
- Output Resistance:
- 349 to 355 ohm
- Input Resistance:
- 400 nominal ohm
- Construction / Finish:
- Aluminum
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 10 ft
- Approvals:
- FM
- Manufacturer:
- Sensortronics VPG
- Model:
- 60060-250
