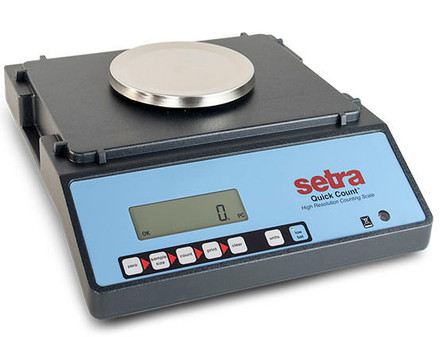

Setra Quick Count counting scales are a high quality solution for a wide array of parts counting applications. Accuracy Monitoring and Weight Stability cut down on the potential for errors within your processes. A series of additional options are available to further streamline your process including a rechargeable battery pack, printers, and bar code scanners. Setra Quick Count counting scales provide high-resolution parts counting capabilities ensuring a perfect solution for virtually any counting application.
Features
- 2 year warranty
- 11 x 0.0001 lb / 5000 x 0.05 g capacity
- 110,000 displayed divisions
- 1 part in 500,000 internal counting resolution
- Bi-directional RS-232 interface
- 6 digit LCD display
- Auto zero tracking
- Weight stability indicator
- Selectable display updating speed
- Counting Accuracy from 95% to 99.99%
- Accuracy monitor
- Counting Capacity of 999,999 pieces
- Units : lb, g, oz, dwt, t oz, ct, gr
- Selectable Baud rates
- Selectable Parity
- Comes with power adapter
- Stainless steel pan
- Operating Temperature of 40° to 100° F
Functions
- General weighing
- Counting
Options
- Rechargeable Battery
- DYMO Labelwriter SE 300 Printer & Setra 400 Direct thermal Printer
- Setra 500 Barcode
Note: Please contact us for questions and requests for options.
2 year manufacturer's warranty
- Capacity:
- 11 lb / 5000 g
- Readability:
- 0.0001 lb / 0.05 g
- Display Divisions:
- 110,000
- Internal Resolution:
- 500,000
- Counting Accuracy:
- Selectable from 95% to 99.99%
- Minimum Sample Size:
- Selectable from 1 to 999
- Counting Capacity:
- 999,999
- Display Update Rate:
- Selectable, up to 5 times per second
- Memory:
- Up to 256 records including: part ID, count, average piece weight, tare
- Weighing Units:
- lb, g, oz, dwt, t oz, ct, gr
- Baud Rates:
- 300, 600, 1200, 2400, 4800, 9600
- Parity:
- Even/odd/none
- Calibration:
- External
- Communication:
- RS-232
- Display Type:
- 6 digit LCD screen
- Overall Dimensions:
- 14 W x 15.5" D x 6" H / 360 x 395 x 145 mm"
- Pan Dimensions:
- 6.25" diameter / 160 mm
- Weight:
- 31 lb / 14 kg
- Operational Temperature:
- 40° to 100° F / 5° to 43° C
- Brand:
- Setra
- Model:
- QC-11
- Part Number:
- 404113
