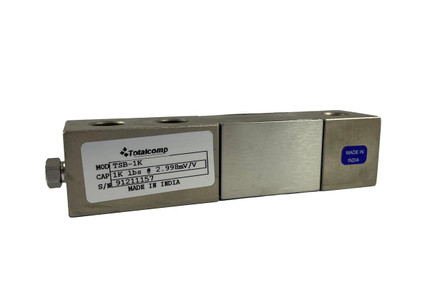

Totalcomp TSB series single ended beam load cells are commonly used in medium to heavy capacity weighing applications. Totalcomp TSB series shear beam load cells have a threaded hole, 20 ft load cell cable, and are constructed of alloy steel with nickel plating.
Features
- Alloy steel with nickel plated construction
- Threaded hole
- 3 mV/V output
- IP67 rating
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
Interchange
- Sensortronics 65023
- Revere 5123
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 15,000 lb
- Hole Threading:
- 1-14 UNF
- Construction:
- Alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 350 ohms
- Output Resistance:
- 350 ohms
- IP Rating:
- IP67
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.05 % full scale
- Zero Balance:
- +/- 1.00% full scale
- Safe Overload:
- 150 % full scale
- Ultimate Overload:
- 300 % full scale
- Safe Temperature Range:
- -10C to 40C
- Operating Temperature Range:
- -16C to 65C
- Cable Length:
- 20 ft
- Manufacturer:
- Totalcomp
- Model:
- TSB-15K
- Part Number:
- 2258
