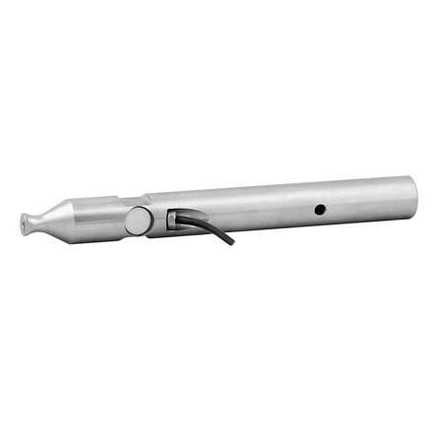

Anyload 563WS-YZ-2.5Klb 2.5K lb Stainless Steel Single Ended Beam Load Cell
Features
- 2.5K lb capacity rating
- Stainless steel
- Environmentally sealed IP67
- 2.0 mV/V ± 1% output
- Load cell cable length 6 m
- Safe overload up to 150% capacity
Interchange Options
- Avery Weigh-Tronix Weigh Bar
- Coti Global CG-WB-SS-2.5Klb
- Rice Lake RL75000 SS-2.5Klb
- Rice Lake RL32011 WB-L-2.5Klb
Common Applications
- OEM
- Floor Scales
- Tank Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 563WS-2.5Klb-YZ
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 2,500 lb
- Safe Overload:
- 150% capacity
- Length:
- 11.50"
- Height:
- 1.62"
- Width:
- 1.62"
- Hole Thread:
- #8-32
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ±1%
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 350 (± 7) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 6 m
