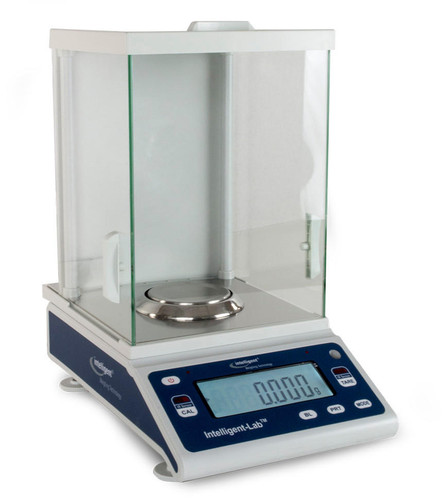

The Intelligent Weighing Technology PM series precision balances feature a one touch external calibration and come shipped with the required calibration weight. PM series balances are designed with safety features such as a spill ring to protect the internal electronic components and a glass draft shield to prevent disturbances when weighing. This balances feature a dedicated print button to streamline your data collection and can be operated with 8 AA batteries making the balance portable.
Features
- External One touch calibration
- Calibration Weight Included
- 1 year warranty
- Dedicated print button
- Spill ring to protect internal electronic components
- Easy to operate menu
- RS-232 interface that can be connected to a printer or PC
- Bright back-light LCD screen easily visible in all light conditions
- Multiple weighing units
- Auto zero tracking
- Adjustable feet and level bubble to ensure stable consistent readings
- Glass draft shield
- Dry battery operation, 8 x AA (batteries not included)
- 120 VAC, 6 VDC, 60 Hz, 300mA power source
Functions
- General weighing
- Parts Counting
- Percentage weighing
Options
- Printer
1 year manufacturer's warranty
- Capacity:
- 100 g
- Readability:
- 0.001 g
- Linearity:
- � 0.002 g
- Repeatability:
- � 0.002 g
- Weighing Units:
- g, oz, oz t, dwt, ct, lb, GN
- Construction:
- Die cast aluminum base, analytical type glass draft shield
- Calibration:
- External
- Communication:
- RS 232 configurable
- Tare Range:
- To capacity by subtraction
- Overall Dimensions:
- 8.5 x 13.5 x 14.5 inches / 216 x 343 x 368 mm
- Pan Size:
- 3.2 inches / 80 mm diameter
- Draft Shield Dimensions:
- 6.75 x 6.75 x 9.5 inches / 165 x 165 x 241 mm
- Weight:
- 9.9 lb / 4.5 kg
- Power:
- 120 VAC, 6 VDC, 60 Hz, 300mA
- Operating Temperature:
- 41�F to 95�F / 5�C to 35�C
- Brand:
- Intelligent Weighing Technology
- Model:
- PM-100
- Part Number:
- 5-PM3-S100-122
